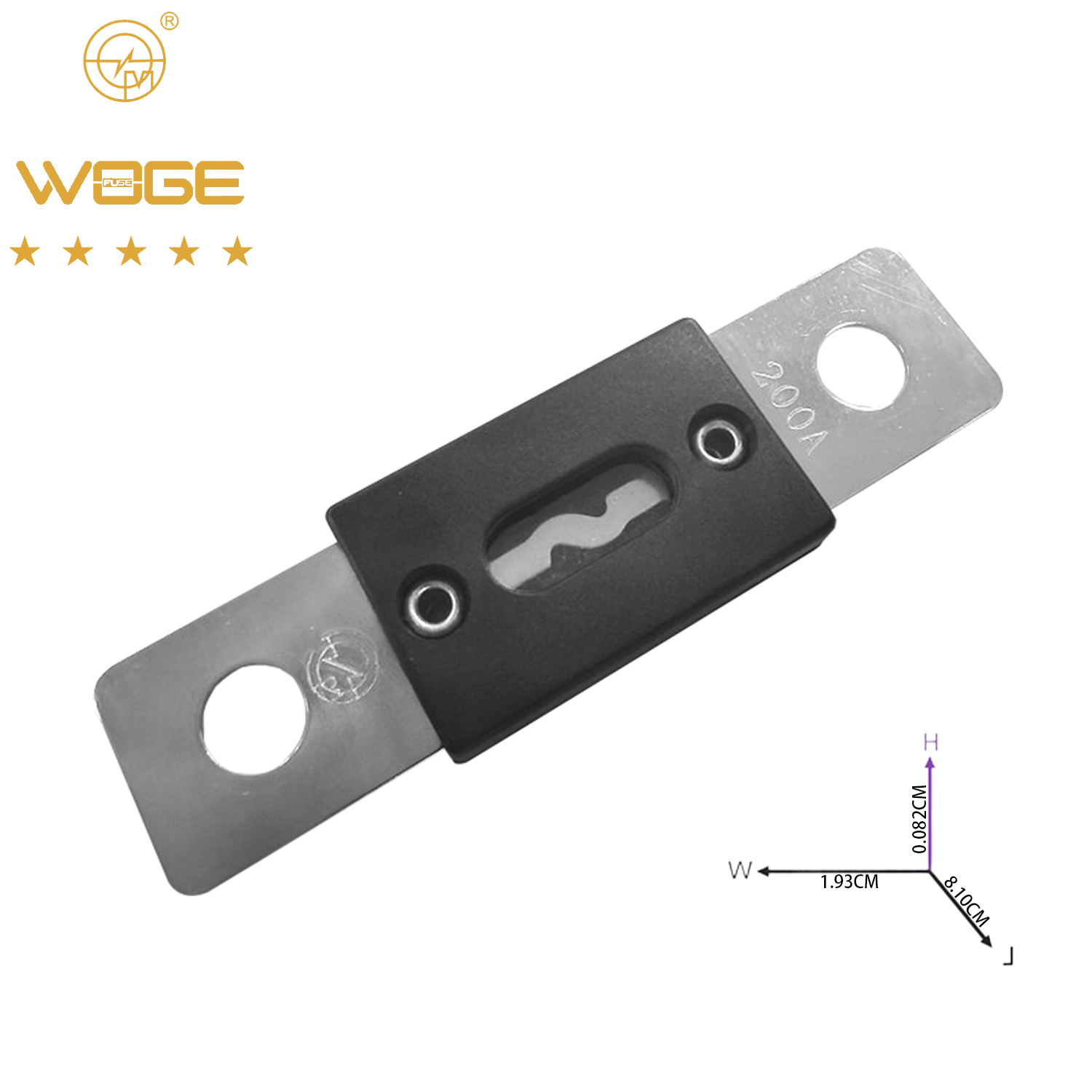

1. 螺栓保險絲|Bolt FUSE
2. 型號|model: ANMG
3. 慢熔|Slow melting
4. 安規認證|Safety certificatio

• Ps：According to usage conditions, the characteristics of the fuse may change|根據使用狀況，保險絲特性可能改變
•

• 1.The ANC-K Fuse is designed for high current circuit protection up to 500A witH “DiffusionPill Technology”ANC- K Fuse also provides time delay characteristics. the ANC Fuse is ideal for battery and alternator protection application and other heavy gauge cables requiring ultra-high current protection.
• 1.ANC-K保險絲設計用于高達500A的大電流電路保護，采用“高分?jǐn)嗉夹g(shù)”ANC- K保險絲還提供延時特性。ANC保險絲是理想的電池和交流發電機保護應用和其他需要超高電流保護的大規格電纜。

2.Note

1. Rated voltage: less than 32VDC
2. Breaking capacity: 2000 amperes at 32 Vdc
3. Operating temperature: -40 ℃~+125 ℃
4. Execution standard: ISO8820-5
5. Material: Cu/ NickeI
6. 2.說明

1. 額定電壓：小于直流32VDC
2. 致斷容量：32vdc時2000安培

3. 使用溫度：-40℃～+125℃
4. 執行標準：ISO8820-5
5. 材質：銅/鎳

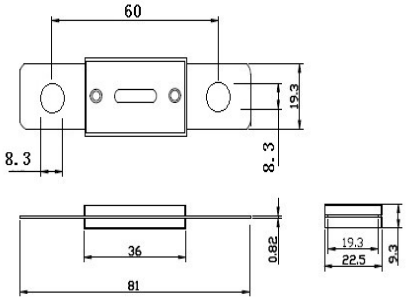

3.The specifications and models of fuses are as follows|保險絲規格型號

4.Fusing characteristics|熔斷特性

注notes: @環保文件以附件發送，每年更新一次; @Environmental protection documents shall be sent as attachments and updated once a yea @安規證書附件發送 @Attachment of safety regulation certificate
