AN47848 30A-350A 125V
- 2025-04-21 10:41:09
- 0

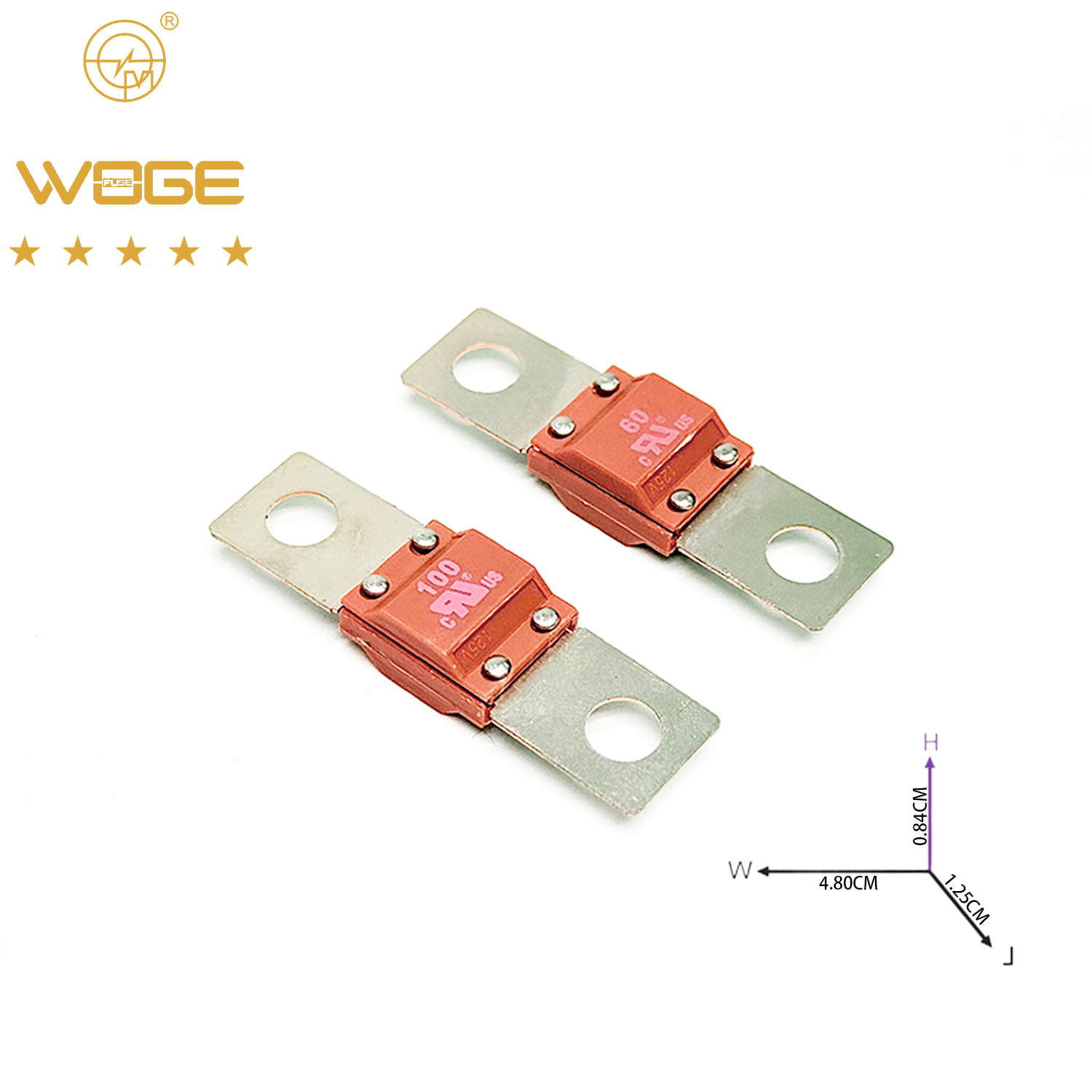

- 螺栓保險絲|Bolt FUSE
- 型號|model: AN47848
- 慢熔|Slow melting
- 安規認證|Safety certificatio
- 1.The AN47848xxx fuse offers a bilt-on space saving fuse for high current wiring protection ang provides time delay characteristics with "Diffusion pill Technology"
- 1.AN47848xxx保險絲為大電流接線提供了一種開關式節省空間的保險絲保護器采用“高分?jǐn)嗉夹g(shù)”提供延時特性
Ps：According to usage conditions, the characteristics of the fuse may change|根據使用狀況，保險絲特性可能改變！
2.Note
- Rated voltage: less than 125VDC
- Breaking capacity: 2500 amperes at 125 VDC
- Operating temperature: -40 ℃~+125 ℃
- Execution standard:
- Material: copper alloy/ nickel
- 2.說明
- 額定電壓：小于直流125VDC
- 致斷容量：125vdc時2500安培
- 使用溫度：-40℃～+125℃
- 執行標準：
- 材質：銅合金/鎳
- 3.The specifications and models of fuses are as follows|保險絲規格型號如
| Material number |
Ampere rating |
Color |
Volt |
Safety regulations |
| AN47848020 |
20 | Orange |
70VDC 125VDC 125VAC |
UL |
| AN47848025 |
25 | UL | ||
| AN47848030 |
30 | UL | ||
| AN47848040 |
40 | UL | ||
| AN47848050 |
50 | UL | ||
| AN47848060 |
60 | UL | ||
| AN47848070 |
70 | UL | ||
| AN47848080 |
80 | UL | ||
| AN47848100 |
100 | UL | ||
| AN47848125 |
125 | UL | ||
| AN47848150 |
150 | UL | ||
| AN47848175 |
175 | UL | ||
| AN47848200 |
200 | UL | ||
| AN47848250 |
250 | UL | ||
| AN47848300 |
300 | UL | ||
| AN47848350 |
350 | UL |
4.Fusing characteristics|熔斷特性
| % of Ampere Rating |
Ampere Rating |
Opening Time |
| 100% | 20-350A | ≥4 Hours, Minimum |
| 200% | 20-350A | ≤1０s, Minimum |
- 注notes:
@環保文件以附件發送，每年更新一次;
@Environmental protection documents shall be sent as attachments and updated once a yea
@安規證書附件發送
@Attachment of safety regulation certificate
