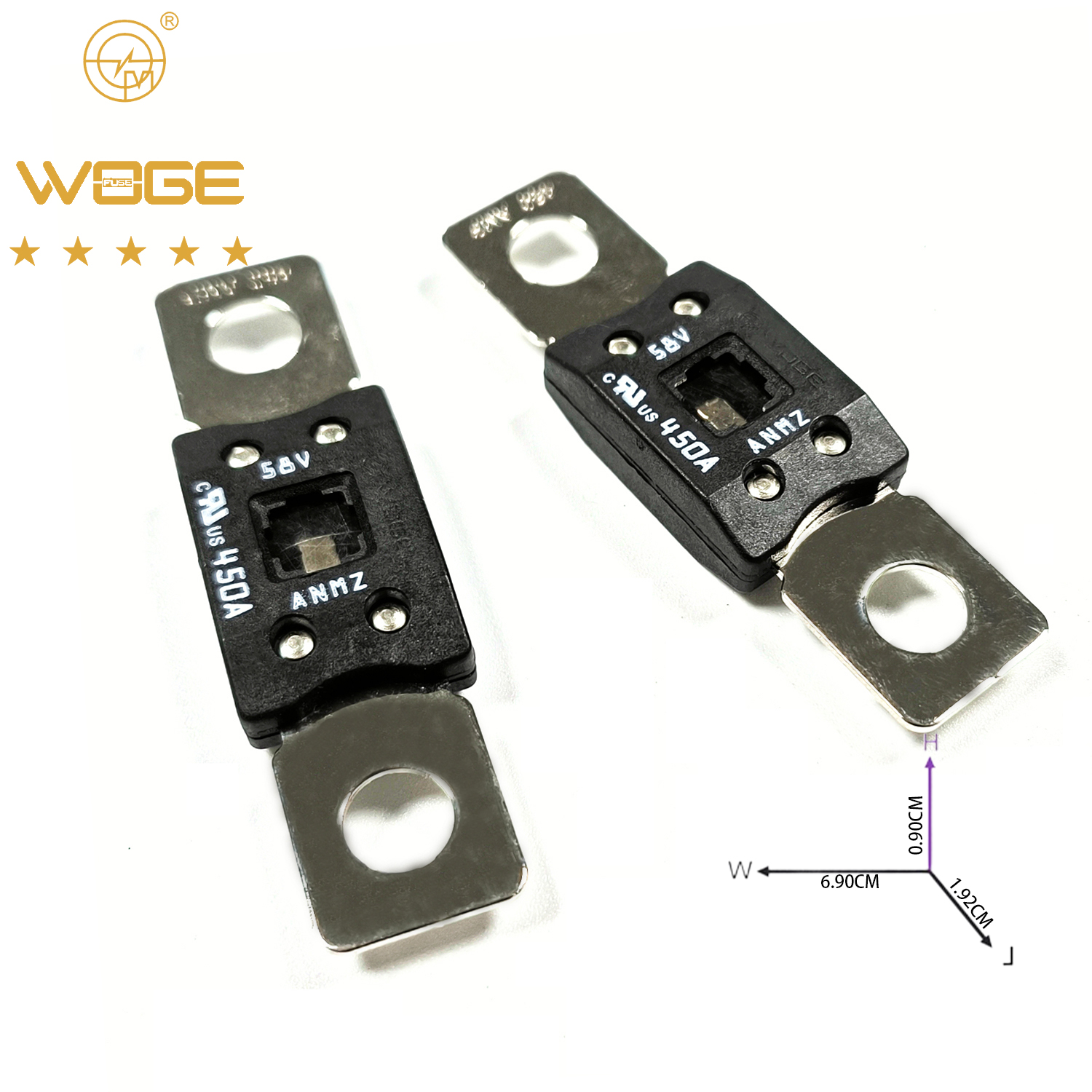

ANMZ 30A-500A 58V
- 螺栓保險絲|Bolt FUSE
- 型號|model: ANMZ-58V 30A-650A 58VdcUL CE Rohs2.0
- 慢熔|Slow melting
- 1.ANMZ保險絲為大電流接線保護提供栓接式節省空間保險絲，并通過擴散丸技術提供延時特性。
- 1.ANMZFuse offers a bolt-on space saving fuse for high current wiring protection and provides time delay characteristics with Diffusion Pill Technology.
- Ps：According to usage conditions, the characteristics of the fuse may change|根據使用狀況，保險絲特性可能改變！
- 2.Note
- Rated voltage: less than 58VDC
- Breaking capacity: 2500A/58V DC
- Operating temperature: -40 ℃~+125 ℃
- Execution standard: ISO8820-5
- Material: copper alloy
- Recommended fuse holder: ANM-H01
- 2.說明
- 額定電壓：小于直流58V
- 致斷容量：2500A/58V DC
- 使用溫度：-40℃～+125℃
- 執行標準：ISO8820-5
- 材質：銅合金
- 推薦使用保險絲座：ANM-H01
- 3.The specifications and models of fuses are as follows|保險絲規格型號如下
| Material number |
Ampere rating |
Color |
Volt |
Safety regulations |
| ANMZ030 |
30 |
BLACK |
58Vdc |
UL |
| ANMZ040 |
40 |
UL |
| ANMZ050 |
50 |
UL |
| ANMZ060 |
60 |
UL |
| ANMZ070 |
70 |
UL |
| ANMZ080 |
80 |
UL |
| ANMZ100 |
100 |
UL |
| ANMZ125 |
125 |
UL |
| ANMZ150 |
150 |
UL |
| ANMZ175 |
175 |
UL |
| ANMZ200 |
200 |
UL |
| ANMZ225 |
225 |
UL |
| ANMZ250 |
250 |
UL |
| ANMZ275 |
275 |
UL |
| ANMZ300 |
300 |
UL |
| ANMZ325 |
325 |
UL |
| ANMZ350 |
350 |
UL |
| ANMZ375 |
375 |
UL |
| ANMZ400 |
400 |
UL |
| ANMZ450 |
450 |
UL |
| ANMZ500 |
500 |
UL |
| ANMZ650 |
650 |
UL |
- 4.Fusing characteristics|熔斷特性
| 額定電流% |
熔斷時間 |
| 40A~250A |
300A~500A |
| 最小 |
最大 |
最小 |
最大 |
| 75% |
--- |
--- |
4 hrs
-
|
--- |
| 100% |
4 hrs |
--- |
--- |
--- |
| 135% |
120 s |
1800 s |
--- |
--- |
| 200% |
1 s |
15 s |
1 s |
15 s |
| 350% |
0.3 s |
5 s |
0.5 s |
5 s |
| 600 |
0.1 s |
1 s |
0.1 s |
1 s |
