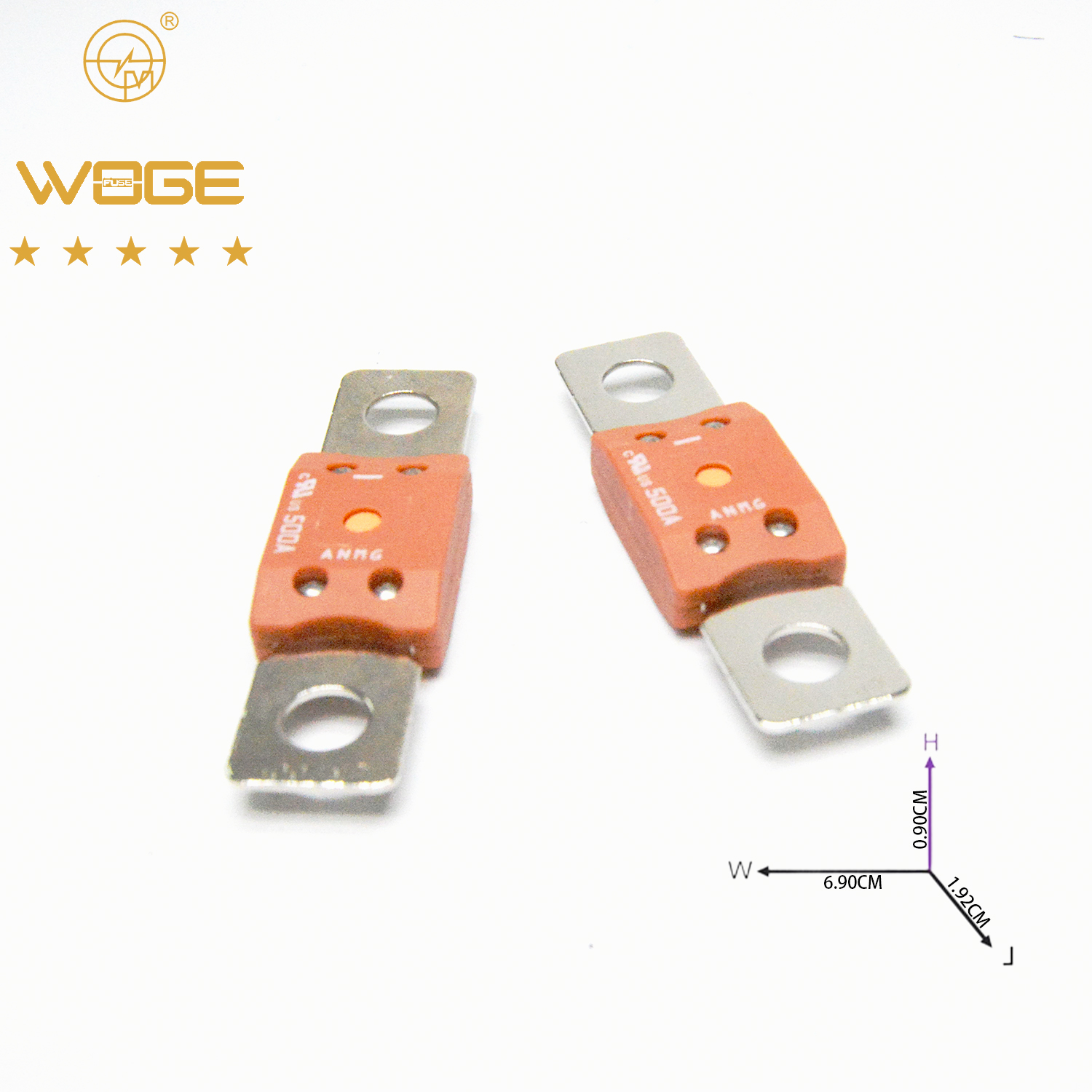

1. 螺栓保險絲|Bolt FUSE
2. 型號|model: ANMG
3. 慢熔|Slow melting
4. 1.ANMZ-120保險絲設計用于高達650A的大電流電路保護,高分斷技術”。ANMZ-120熔斷器還提供延時特性。ANMZ保險絲是理想的電池以及交流發電機保護應用和其他需要超高電流的大規格電纜保護。
   1.The ANMZ-120 Fuse is designed for high current circuit protection up to 650A with “DiffusionPill Technology.” ANMZ-120 Fuse also provides time delay characteristics. the ANMZ Fuse is ideal for battery and alternator protection application and other heavy gauge cables requiring ultra-high current protection.



1. Ps：According to usage conditions, the characteristics of the fuse may change|根據使用狀況，保險絲特性可能改變！

1.

2. 2.Note
3. Rated voltage: less than 120VDC
   Breaking capacity:5000 amperes at 80 Vdc /2500 amperes at 120 Vdc
   Operating temperature: -40 ℃~+125 ℃
4. Execution standard:ISO 20934–Type SF56/UL248-13
5. Material: copper alloy
6. Recommended fuse holder: ANMZ-H01, ANMZ-H01A

7. 2.說明
8. 額定電壓：小于直流120VDC
9. 致斷容量：80vdc時5000安培/ 120vdc時2500安培

10. 使用溫度：-40℃～+125℃
11. 執行標準：ISO 20934–Type SF56/UL248-13
12. 材質：銅合金
13. 推薦使用保險絲座: ANMZ-H01, ANMZ-H01A
14.

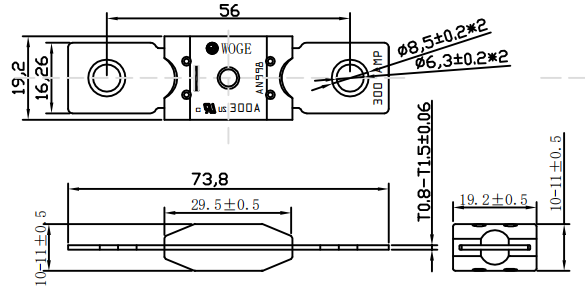

15. 3.The specifications and models of fuses are as follows|保險絲規格型號如下

4.Fusing characteristics|熔斷特性

1. 注notes:
2. @環保文件以附件發送，每年更新一次;
3. @Environmental protection documents shall be sent as attachments and updated once a yea
4. @安規證書附件發送
5. @Attachment of safety regulation certificate
