AN492-B
- 2025-05-09 15:07:03
- 0

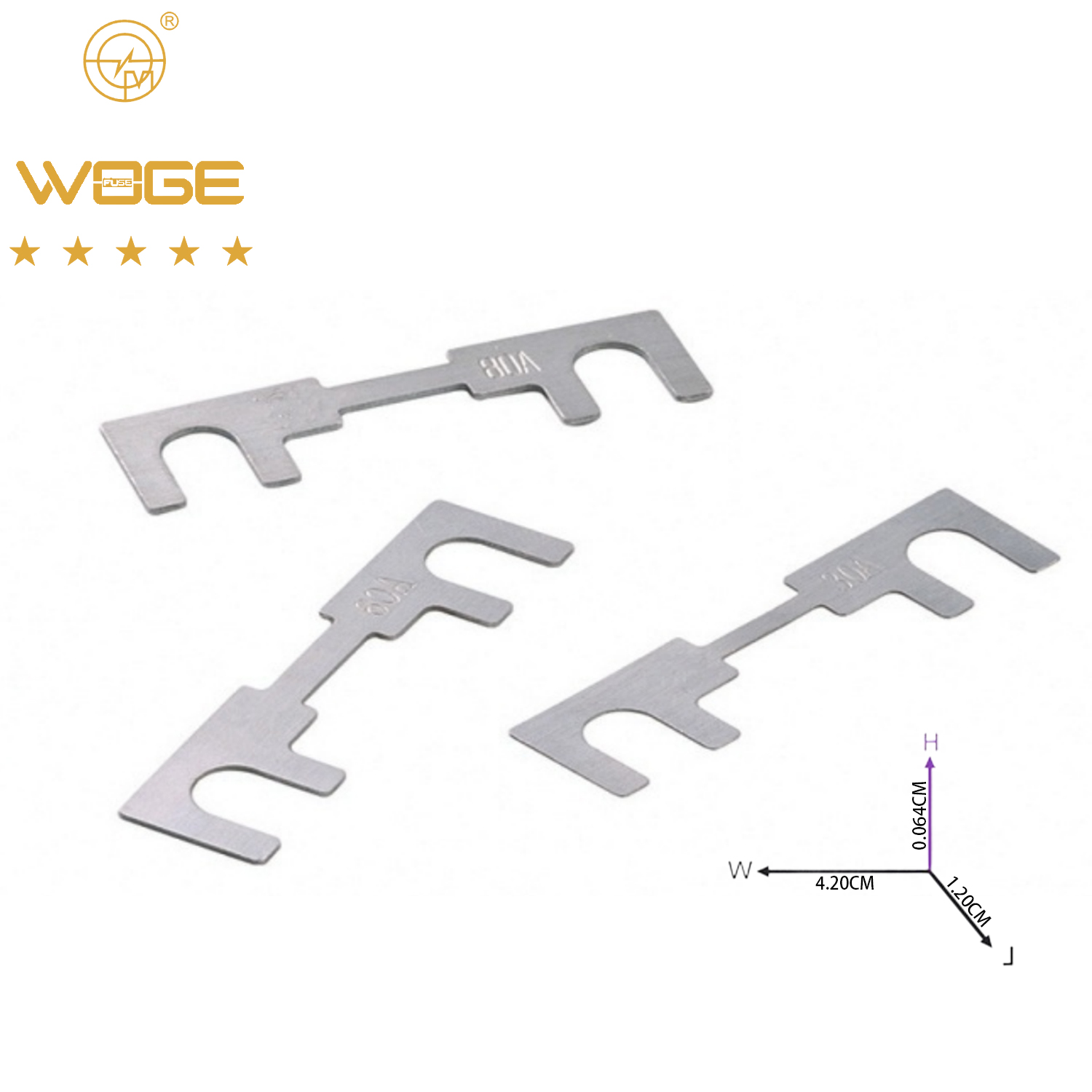

- 螺栓保險絲|Bolt FUSE
- 型號|model: ANMG
- 慢熔|Slow melting
- 安規認證|Safety certificatio
Ps：According to usage conditions, the characteristics of the fuse may change|根據使用狀況，保險絲特性可能改變！

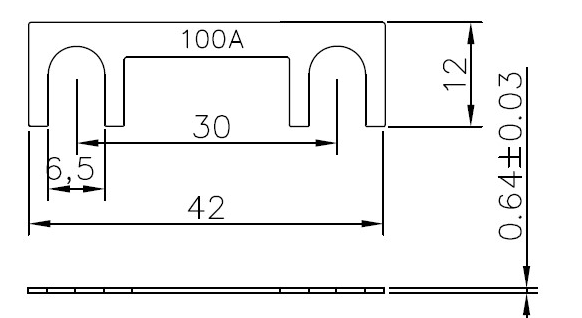

1.The AN492-B fuse offers a bilt-on space saving fuse for high current wiring protection ang provides time delay characteristics with "Diffusion pill Technology" Size chart:
1.AN492-B保險絲為大電流接線提供了一種開關式節省空間的保險絲“高分?jǐn)嗉夹g(shù)”提供延時保護特性.
2.Note
- Rated voltage: less than 36VDC
- Breaking capacity: 1000 amperes at 36 Vdc
- Operating temperature: -40 ℃~+125 ℃
- Execution standard: ISO8820-5
- 2.說明
- 額定電壓：小于直流36VDC
- 致斷容量：36vdc時1000安培
- 使用溫度：-40℃～+125℃
- 執行標準：ISO8820-5
3.The specifications and models of fuses are as follows|保險絲規格型號如
| Material number |
Ampere rating |
Color |
Volt |
Safety regulations |
| AN4920200/B |
20 | Silvery |
36V DC | / |
| AN492025/B |
25 | / | ||
| AN492030/B |
30 | / | ||
| AN492040/B |
40 | / | ||
| AN492050/B |
50 | / | ||
| AN492060/B |
60 | / | ||
| AN492070/B |
70 | / | ||
| AN492080/B |
80 | / | ||
| AN492100/B |
100 | / | ||
| AN492125/B |
125 | / | ||
| AN492150/B |
150 | / | ||
| AN492175/B |
175 | / |
4.Fusing characteristics|熔斷特性
| Tesl turrent |
Rated current |
Operating tlme |
|
| MIN | MAX | ||
| 100% | 20-175A | 100 Hours |
/ |
| 200% |
20-175A |
10sec | / |
| 350% |
20-175A |
0.5sec | / |
注notes:
@環保文件以附件發送，每年更新一次;
@Environmental protection documents shall be sent as attachments and updated once a yea
@安規證書附件發送
@Attachment of safety regulation certificate
