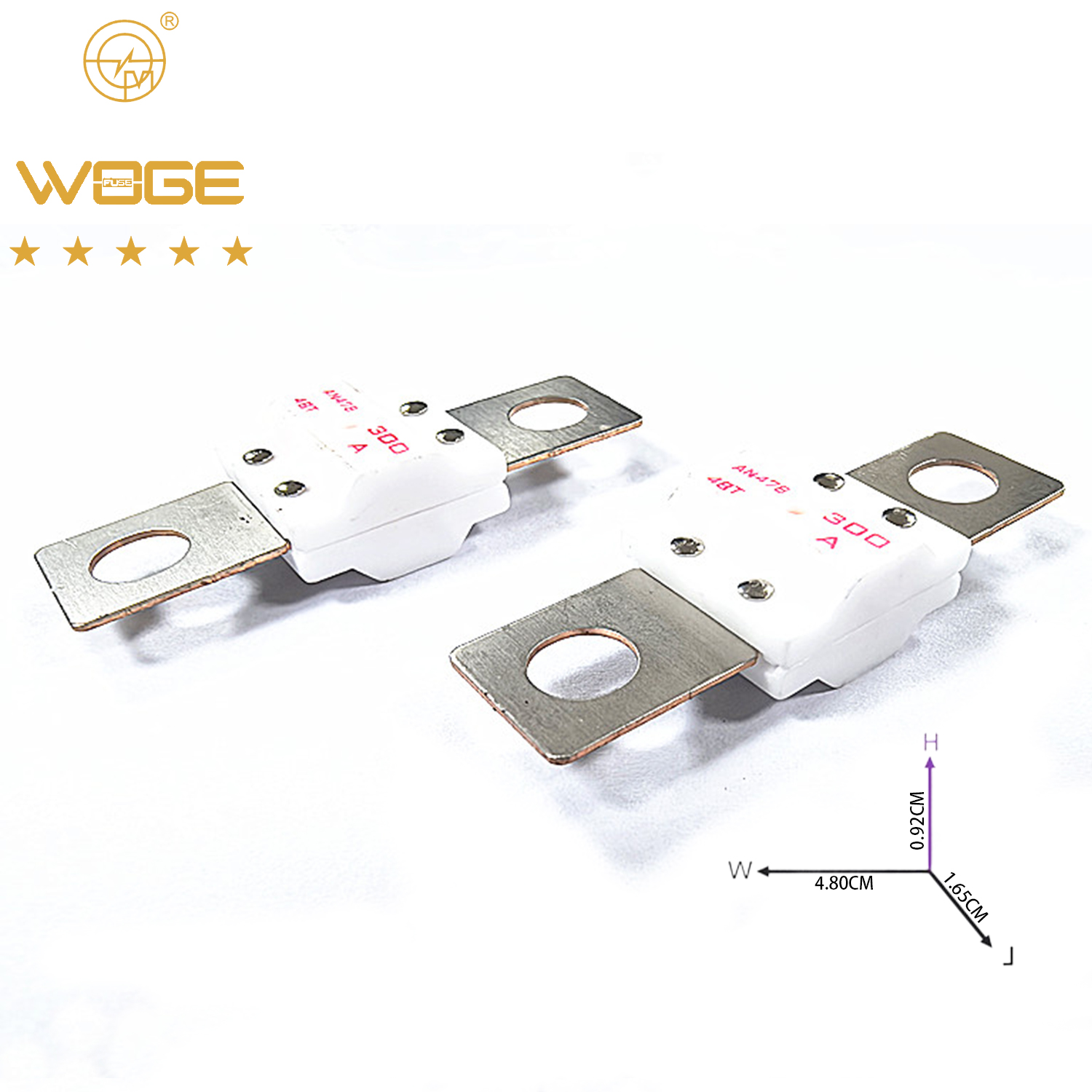

1. 螺栓保險絲|Bolt FUSE
2. 型號|model: AN47848T(陶瓷)
3. 慢熔|Slow melting
4. 1.AN47848 Txxx熔斷器為大電流接線保護提供了一種不占用空間的熔斷器，并具有“D灌注丸技術”尺寸圖的延時特性.

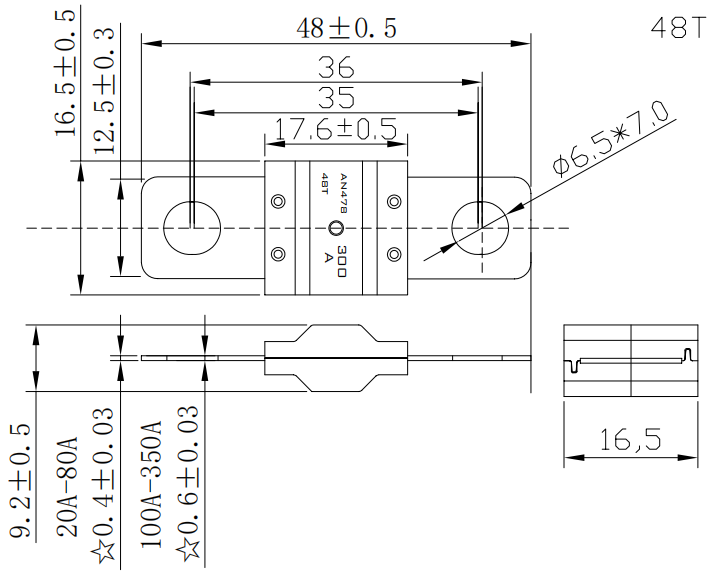

5. 1.The AN47848 Txxx fuse offers a bilt-on space saving fuse for high current wiringprotection ang provides time delay characteristics with " D iffusion pill Technology"Size chart

Ps：According to usage conditions, the characteristics of the fuse may change|根據使用狀況，保險絲特性可能改變！

1. 2.Note
   Rated voltage: less than 125VDC
   Breaking capacity: 2500A 125V DC
   Operating temperature: -40 ℃~+125 ℃
2. Body llaterical: High pressure ceramics

3. Material: copper alloy
   2.說明
   額定電壓：小于直流125V
   致斷容量：2500A/125V DC
   使用溫度：-40℃～+125℃

4. 閥體橫向：高壓陶瓷

5. 材質：銅合金


3.The specifications and models of fuses are as follows|保險絲規格型號如

4.Fusing characteristics|熔斷特性

注notes:
@環保文件以附件發送，每年更新一次;
@Environmental protection documents shall be sent as attachments and updated once a yea
@安規證書附件發送
@Attachment of safety regulation certificate
