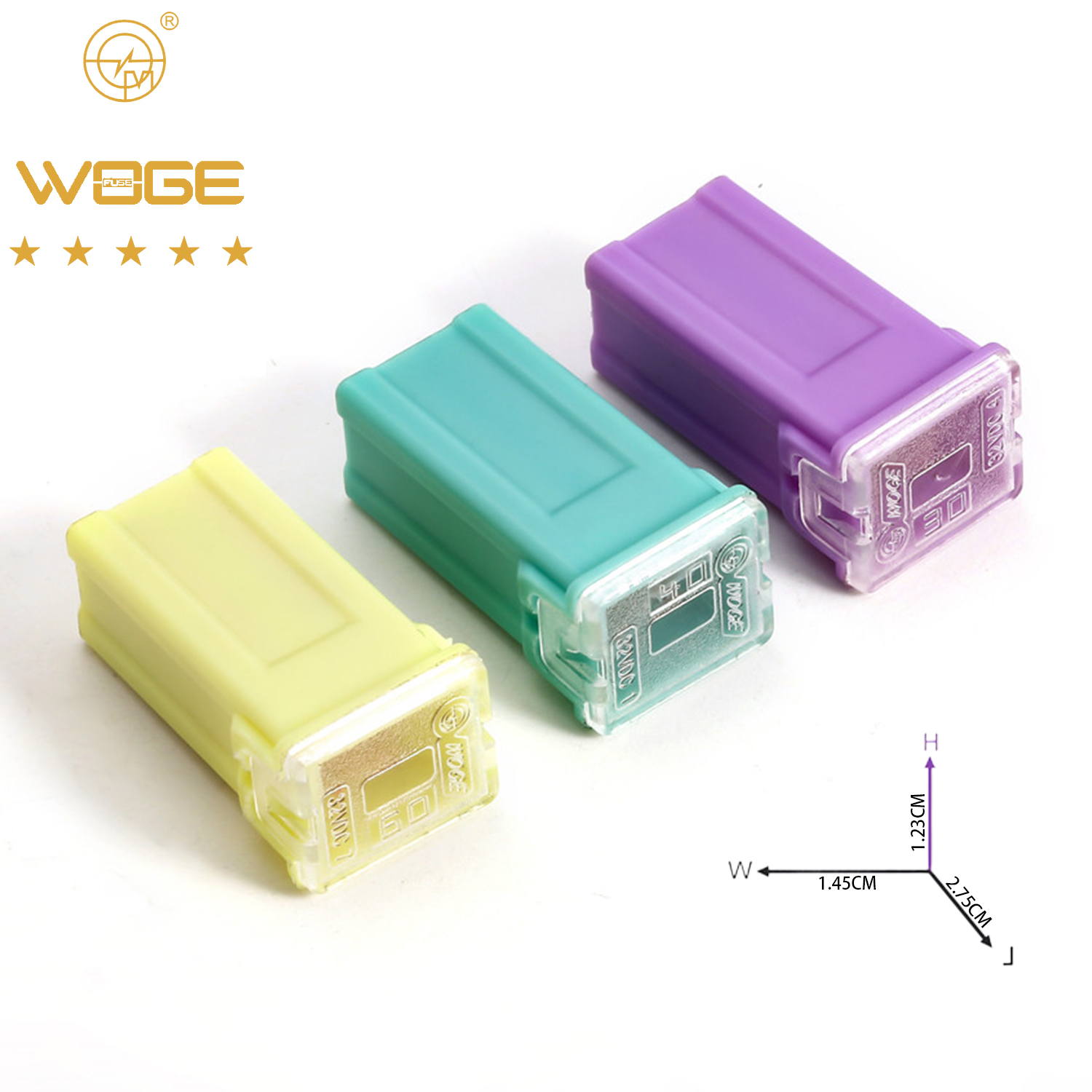

1. 方型慢熔保險絲 |  Square Shape Slow melting Fuse
2. 型號 | model:SBAF-NMF
3. 慢熔|Slow melting
4. 安規認證|Safety certificatio

Ps：According to usage conditions, the characteristics of the fuse may change|根據使用狀況，保險絲特性可能改變！

1. 1.SBAF-NMF is a cartridge style fuse with female terminal design. JCASE? provides both increased time delay and low voltage drop to protect high current circuits. JCASE? has the ability to handle inrush currents.
2. 1.SBAF-NMF是帶連接座/頭和端子的管狀保險絲，它既增加了延時，又降低了電壓降，可保護高電流電路并能應對突入電流。
3.

4. 2.Note
5. Voltage Rating: 32 VDC
6. Interrupting Rating: 1000A amperes at32 VDC
7. Operating Temperature Range: -40? C to + 125? C
8. Housing Material: PA-GF13HS
9. Housing Material (60A): PA-GF13
10. Cover Material: PC
11. Insertion Force: 53N max. (12 lb.)
12. Extraction Force: 9N min. (2 lb.)
13. Complies with: SAE 2741, ISO 8820-4
14. 2. 額定電壓：32vdc
    中斷額定值：32vdc時1000A安培
    工作溫度范圍：-40?C至+ 125?C
    外殼材料：PA-GF13HS
    外殼材料（60A）： PA-GF13
    封面材質：PC
    插入力：最大53N。(12磅。)
    萃取力：9N min. （2 lb.）
    符合：SAE 2741， ISO 8820-4

15.

16. 3.The specifications and models of fuses are as follows|保險絲規格型

4.Fusing characteristics|熔斷特性

注notes: @環保文件以附件發送，每年更新一次; @Environmental protection documents shall be sent as attachments and updated once a yea @安規證書附件發送 @Attachment of safety regulation certificate
