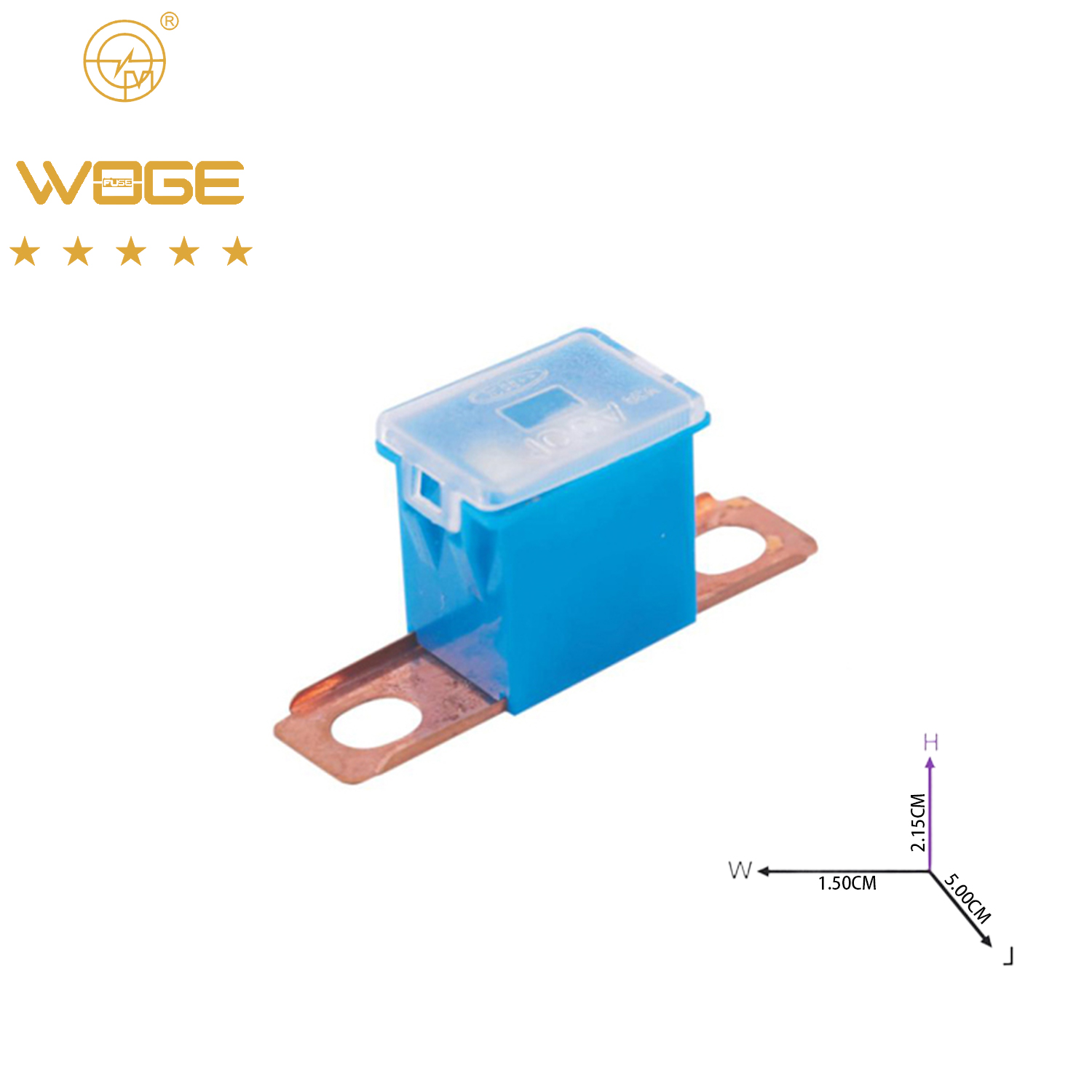

方型慢熔保險絲 | Square Shape Slow melting Fuse

1. 型號 | model:SBAF-SL
2. 慢熔|Slow melting
3. 安規認證|Safety certificatio
4.

Ps：According to usage conditions, the characteristics of the fuse may change|根據使用狀況，保險絲特性可能改變！

1. 1.SBAF-SL  is a cartridge style fuse with female terminal design. JCASE? provides both increased time delay and low voltage drop to protect high current circuits. JCASE? has the ability to handle inrush currents.
2. 1.SBAF-SL是帶連接座/頭和端子的管狀保險絲，它既增加了延時，又降低了電壓降，可保護高電流電路并能應對突入電流

2.Note

1. Voltage Rating: 32 VDC
2. Interrupting Rating: 1000A amperes at32 VDC
3. Operating Temperature Range: -40? C ~ 125? C
4. Housing Material:
5. Housing Material (60A):
6. Cover Material:
7. Insertion Force:
8. Extraction Force:
9. Complies with:
10. 2.注額定電壓：32vdc
11. 中斷額定值：32vdc時1000A安培
12. 工作溫度范圍：-40?C~ 125?C
13. 外殼材料：
14. 外殼材料（60A）：
15. 外殼材料：
16. 插入力：
17. 拔出力：
18. 符合：

1. 3.The specifications and models of fuses are as follows|保險絲規格型

Material number	Ampere rating	Volt	Color	Typ. Voltage Drop (mV)	I2t (A2s)
SBAF-SL20	20	32V DC	White
SBAF-SL30	30		Pink
SBAF-SL40	40		Green
SBAF-SL50	50		Red
SBAF-SL60	60		Yellow
SBAF-SL70	70		Brown
SBAF-SL80	80		Black
SBAF-SL100	100		Blue
SBAF-SL120	120		Grey

4.Fusing characteristics|熔斷特性

注notes: @環保文件以附件發送，每年更新一次; @Environmental protection documents shall be sent as attachments and updated once a yea @安規證書附件發送 @Attachment of safety regulation certificate
