WSMD2920貼片可恢復(fù)保險(xiǎn)絲

  • 2022-12-30 16:49:50
  • 0

貼片自恢保險(xiǎn)絲|  SMD PTC FUSE

貼片| SMD

型號(hào) | model: WSMD2920



Specification Sheet

Terminal Pad Solderability:
Meets EIA Specification RS 186-9E And ANSI/J-STD-002 Category 3.
Terminal PAD Materials: Tin-Plated Nickel-copper
Lead-Free,RoHS Compliant
Marking:
R ROHS
1 010Part Identification

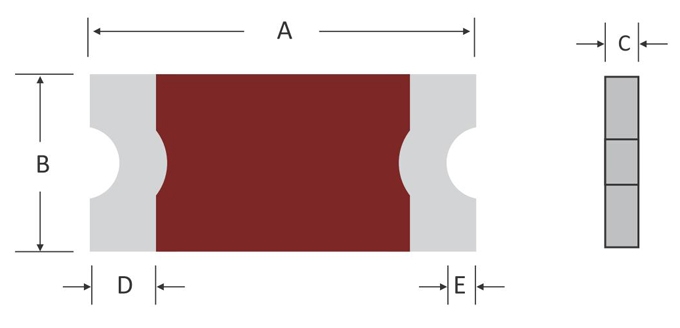

TABLEI.DIMENSIONS

MODEL A
B
C
D E
MIN MAX MIN MAX MIN MAX MIN MAX
WSMD2920R030SF 6.73 7.98 4.80 5.44 0.60 1.30 0.30 0.25
WSMD2920R050SF 6.73 7.98 4.80 5.44 0.60 1.30 0.30 0.25
WSMD2920R075SF 6.73 7.98 4.80 5.44 0.60 1.30 0.30 0.25
WSMD2920R110SF 6.73 7.98 4.80 5.44 0.40 1.00 0.30 0.25
WSMD2920R125SF 6.73 7.98 4.80 5.44 0.40 0.90 0.30 0.25
WSMD2920R150SF 6.73 7.98 4.80 5.44 0.40 0.90 0.30 0.25
WSMD2920R185SF 6.73 7.98 4.80 5.44 0.30 0.90 0.30 0.25
WSMD2920R200SF 6.73 7.98 4.80 5.44 0.30 0.90 0.30 0.25
WSMD2920R250SF 6.73 7.98 4.80 5.44 0.30 0.90 0.30 0.25
WSMD2920R260SF 6.73 7.98 4.80 5.44 0.30 0.90 0.30 0.25
WSMD2920R300SF 6.73 7.98 4.80 5.44 0.60 1.30 0.30 0.25

Performance Specification

Model V Max
 I Max
 I Hold@25℃
 I Trip@25℃
 Pd Typ.
 Maximum Time      To Trip Resistance Agency Approval
(V DC) (A) (A) (A) (W) Current(A) Time(Sec) R1 Min(Ω) R1 Max(Ω) UL TUV
WSMD2920R030SF 60 100 0.30 0.60 1.5 1.5 3.0 0.600 4.800

WSMD2920R050SF 60 100 0.50 1.00 1.5 2.5 4.0 0.180 1.400

WSMD2920R075SF 33 100 0.75 1.50 1.5 8.0 0.3 0.100 1.000

WSMD2920R110SF 33 100 1.10 2.20 1.5 8.0 0.5 0.065 0.410

WSMD2920R125SF 33 100 1.25 2.50 1.5 8.0 2.0 0.050 0.250

WSMD2920R150SF 33 100 1.50 3.00 1.5 8.0 2.0 0.035 0.230
