WSMD0603貼片可恢復(fù)保險(xiǎn)絲

  • 2022-12-28 16:22:24
  • 0

貼片自恢保險(xiǎn)絲|  SMD PTC FUSE

貼片| SMD

型號(hào) | model: WSMD0603



Specification Sheet

Terminal Pad Solderability:
Meets EIA Specification RS 186-9E And ANSI/J-STD-002 Category 3.
Terminal PAD Materials: Tin-Plated Nickel-copper
Lead-Free,RoHS Compliant
Marking:
R ROHS
1 010Part Identification

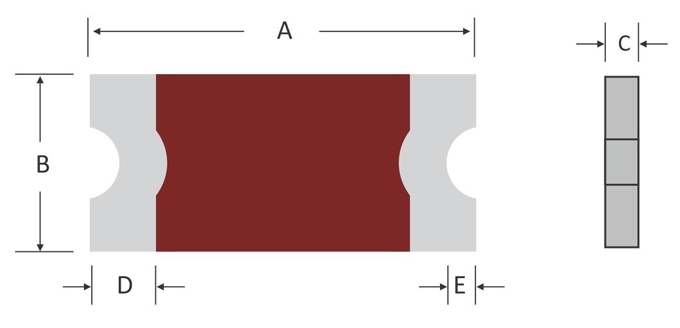

TABLEI.DIMENSIONS

MODEL A
B
C
D E
MIN MAX MIN MAX MIN MAX MIN MAX
WSMD0603R010SF 1.45 1.85 0.65 1.05 0.40 1.00 0.15 0.10
WSMD0603R020SF 1.45 1.85 0.65 1.05 0.40 1.00 0.15 0.10
WSMD0603R025SF 1.45 1.85 0.65 1.05 0.40 1.00 0.15 0.10
WSMD0603R035SF 1.45 1.85 0.65 1.05 0.40 1.00 0.15 0.10
WSMD0603R050SF 1.45 1.85 0.65 1.05 0.50 1.00 0.15 0.10
WSMD0603R075SF 1.45 1.85 0.65 1.05 0.50 1.00 0.15 0.10
WSMD0603R100SF 1.45 1.85 0.65 1.05 0.50 1.00 0.15 0.10

Performance Specification

Model Mar
     King 		V Max
 I Max
 I Hold@25℃
 I Trip@25℃
 Pd Typ.
 Maximum Time      To Trip Resistance Agency Approval
(V DC) (A) (A) (A) (W) Current(A) Time(Sec) R1 Min(Ω) R1 Max(Ω) UL TUV
WSMD0603R010SF 1 15.0 40 0.10 0.30 0.5 0.5 1.00 0.900 6.000

WSMD0603R020SF 2 9.0 40 0.20 0.50 0.5 1.0 0.60 0.550 3.500

WSMD0603R025SF 2 9.0 40 0.25 0.55 0.5 8.0 0.08 0.500 3.000

WSMD0603R035SF 3 6.0 40 0.35 0.75 0.5 8.0 0.10 0.20 1.400

WSMD0603R050SF 5 6.0 40 0.50 1.00 0.5 8.0 0.10 0.100 0.800

WSMD0603R075SF 7 6.0 40 0.75 1.40 0.5 8.0 0.10 0.060 0.450

WSMD0603R100SF 0 6.0 40 1.00 2.00 0.5 8.0 0.10 0.040 0.300




Passive aging +85℃,1000 hrs. ±5% typi
Humidity aging +85℃,85% RH.,168 hours ±5% typical
Thermal shock +85℃ to -40℃,20 time  hours ±33% typical
Resistance to solvent MIL-STD-202,Method 215 No change
Vibration MIL-STD-202,Method 201 No change
