AB11U 1A-40A 32Vdc
- 2024-06-18 17:02:31
- 0
AB11U 32V
- Blade fuse
- Model | Model: AB11U 1A-40A 32Vdc UL Rohs
- Rapid meltin
- Scope - The indicated fuse is suitable for motor vehicles, ships, and trailers. The fuse shown is used for motor vehicles, power sources, ships, and trailers to protect electrical circuits and equipment. This standard applies to the structure shown and is not intended to limit the design and use of other configurations and materials that can meet the requirements of the vehicle. 1. Scope - The fuse shown is used for protecting electrical circuits and equipment on vehicles, ships, and trailers, power sources, etc. This standard is designed for display purposes and does not restrict its use in other structures or vehicles that meet the requirements; AB11U
| 快速動作，低電壓高達32 v直流 | |
| Material 材料 | *Body: Plastic. * 身體：塑料. *Metal: Zinc Alloy * 金屬：鋅合金 |
| Standard 標準 | According To SAE J2077 根據SAE J2077 |
| To Permit More Fuses in The Same Amount of Space 在相同的空間內允許使用更多的保險絲 | |

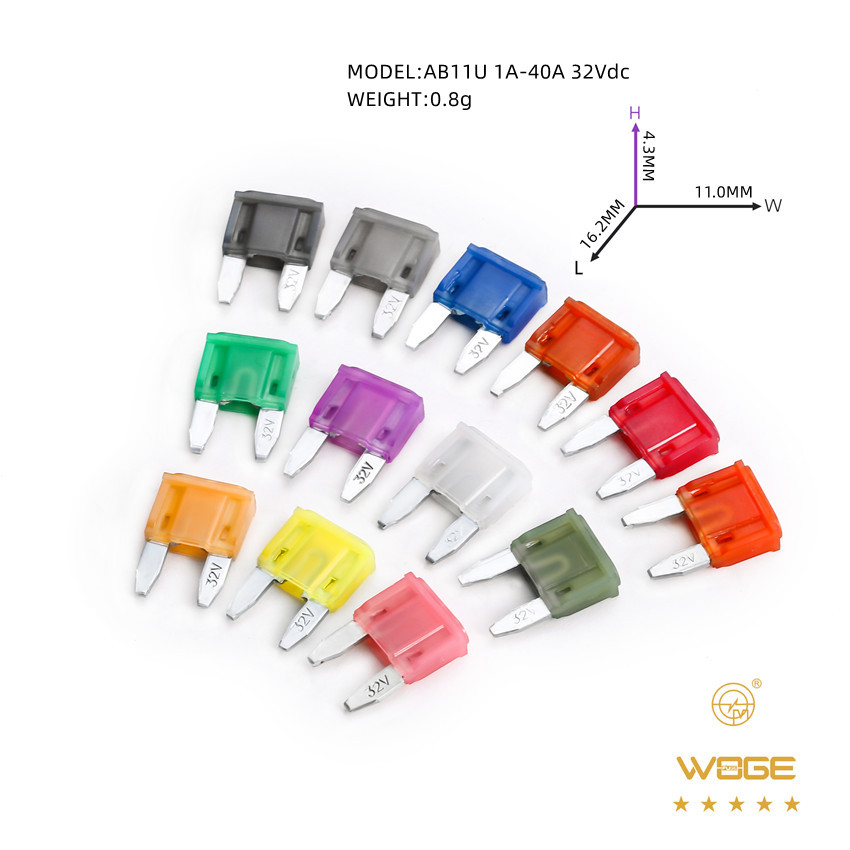

| Fuses Are Color-Coded For Easy Amperage Identification. 保險絲采用顏色編碼，便于安培數識別。 | |
Ordering Information
| Part Number | Ampere(A) | VoltageVDC | Body Color |
| AB11U001 | 1A | 32V | Black |
| AB11U02 | 2A | 32V | Lt.Gray |
| AB11U003 | 3A | 32V | Violet |
| AB11U004 | 4A | 32V | Pink |
| AB11U005 | 5A | 32V | Tan |
| AB11U075 | 7.5A | 32V | Brown |
| AB11U010 | 10A | 32V | Red |
| AB11U015 | 15A | 32V | Blue |
| AB11U020 | 20A | 58V | Yellow |
| AB11U025 | 25A | 32V | Natural |
| AB11U030 | 30A | 32V | Green |
| AB11U035 | 35A | 32V | Purple |
| AB11U040 | 40A | 32V | Orange |
Specifications Opening Time / Pre-arcing Time
| In | 1.1In | 1.35In | 2.0In | 3.5In | 6.0In | ||||
| 1-35A | >100Hours | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. |
| 0.75 s | 1800 s | 0.15 s | 5 s | 0.04 s | 0.5 s | 0.02 s | 0.1 s | ||
Interruption rating: 1000 Amperes@32V DC
注notes：
@環保文件以附件發送，每年更新一次；
@Environmental protection documents shall be sent as attachments and updated once a year;
@安規證書附件發送；
@Attachment of safety regulation certificate
