AB10 1A-30A 58Vdc
- 2022-08-04 20:08:12
- 0

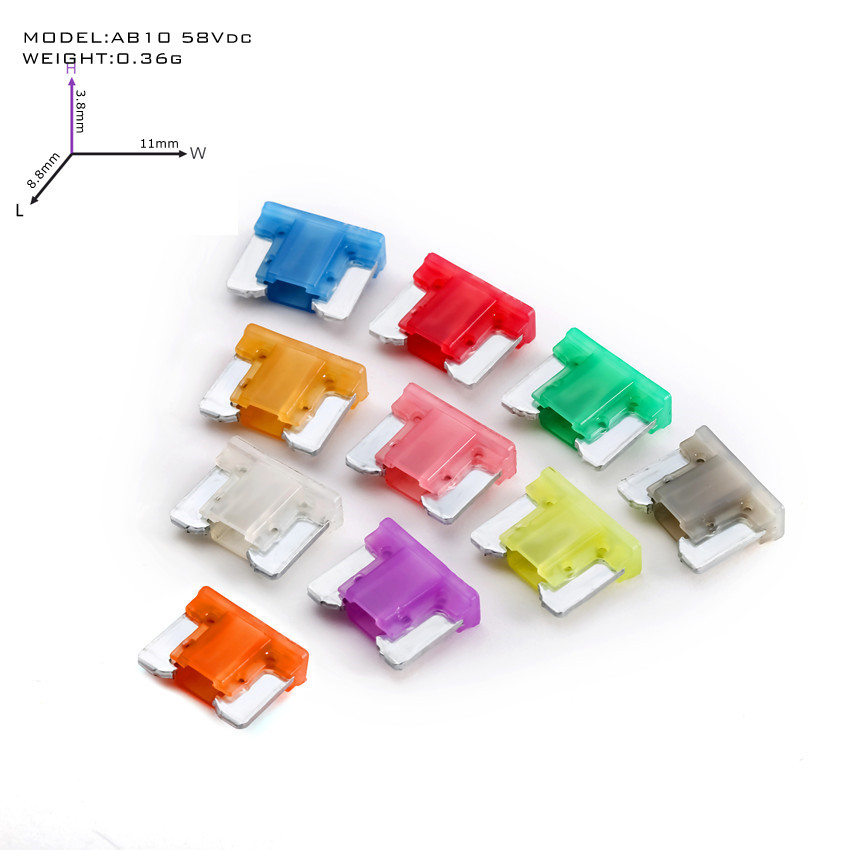

低背保險絲 AB10 1A-30A 58Vdc Rohs
速熔|Rapid melting
1.Scope- The fuses shown are for in motor vehicles，boats and trailers，The fuses shown are for in motor vehicles，Power Supply，boats and trailers，to protect ect electricai wiring and equipment。This standard isfor the construction shown and is not intended to restrict thedesign and use of other configurations and materials capableof meeting the vehicle requirements。
1.范圍-所顯示的熔斷器是用于汽車，船和拖車,電源等上保護電氣線路和設備。本標準是按展示設計，不是限制設計使用在其它結構和能夠滿足要求車輛;
| Fast Acting, Low Voltage For UP To 32v DC | |
| Material |
*Body: Plastic. *Metal: Zinc Alloy |
| Standard | According To SAE J2077 |
| To Permit More Fuses in The Same Amount of Space | |
| Fuses Are Color-Coded For Easy Amperage Identification. | |
Ordering Information
| Part Number | Ampere(A) | VoltageVDC | Body Color |
| AB10002 | 2A | 32V | Gray |
| AB10003 | 3A | 32V | Violet |
| AB10004 | 4A | 32V | Pink |
| AB10005 | 5A | 32V | Tan |
| AB10075 | 7.5A | 32V | Brown |
| AB10010 | 10A | 32V | Red |
| AB10015 | 15A | 32V | Blue |
| AB10020 | 20A | 32V | Yellow |
| AB10025 | 25A | 32V | Natural |
| AB10030 | 30A | 32V | Green |
| AB10035 | 35A | 32V | Purple |
Specifications Opening Time / Pre-arcing Time
| In | 1.1In | 1.35In | 2.0In | 3.5In | 6.0In | ||||
| 3-35A | >100Hours | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. |
| 0.75 s | 1800 s | 0.15 s | 5 s | 0.04 s | 0.5 s | 0.02 s | 0.1 s | ||
注notes：
@環保文件以附件發送，每年更新一次；
@Environmental protection documents shall be sent as attachments and updated once a year;
@安規證書附件發送
@Attachment of safety regulation certificate
