ANMZ-H04 多路螺栓保險絲盒

  • 2025-04-08 16:42:33
  • 0

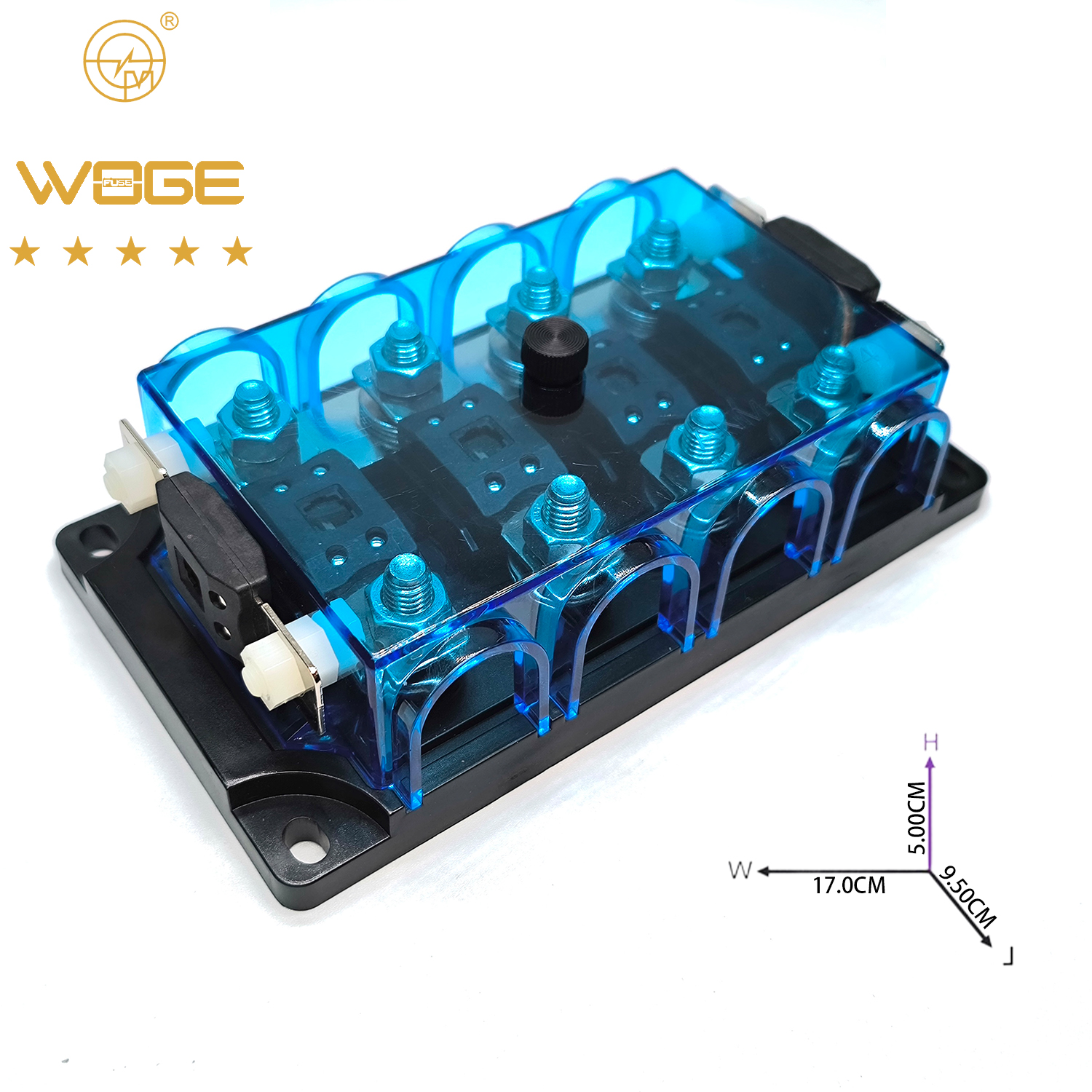

多路螺栓保險絲盒 | Bolt plate fuse Box Multipoint wirin
  1. 型號 | model: ANMZ-H04



  1. 1.ANMZ-H04 is a fuse holder with bolt fuses installed inside, and customers can choose a 4-in-4-out wiring method according to their needs
  2. 1.ANMZ-H04是一款內部裝有螺栓保險絲的保險絲座，可根據客戶需求可選擇4進4出的出接線方式

  4. 2Note
  1. ? Rated voltage: ≤ 80V DC
  2. ? Use environment: -40 ~ +125℃ u
  3. ? Material: Plastic, Copper Alloy, Steel
  1. ? Tightening force: Fuse tightening force (M8) 12~13 N.m, box fastening force (M5) 5~7N. m
  2. ? Wiring method: Four in N out (N ≤ 9)
  3. ? Recommended insurance :ANMA/AN998 40A~500A
  1. 2.說明
    ?額定電壓：≤80V DC
    ?使用環境： -40～+125℃ u
    ?緊固力:保險絲緊固力（M8）12~13 N.m, 盒裝緊固力（M5）5~7N.m
    ?材質：塑料，銅合金，鋼
    ?電線規格：輸入≤95mm2,輸出≤25mm2
    ?接線方式： 四進N出（N≤9）
    ?推薦保險:ANMA/AN998 40A~500A

  3. 注notes：
  4. @環保文件以附件發送，每年更新一次；
  5. @Environmental protection documents shall be sent as attachments and updated once a year;
  6. @安規證書附件發送；
  7. @Attachment of safety regulation certificate
