WG-H1M7S 多路螺栓保險絲盒
- 多路螺栓保險絲盒 | Bolt plate fuse Box Multipoint wiring
- 型號 | model: WG-H1M7S
- 1.The WG-H1M7S fuse box is an internal bus fuse holder with waterproof effect. It can be customized according to customer requirements, offering either one-in-multiple-out or two-in-multiple-out wiring methods.
- 1.WG-H1M7S保險絲盒是一款內部總線且具有防水效果 的保險絲座，可根據客戶需求可選擇一進多出或二進多出接線方式
- 2. Specifications:
- ? Rated Voltage: ≤70V DC
- ? Operating Environment: -40~+125℃ u Waterproof Rating: IP ? Material: Plastic, Copper Alloy, Steel
- ? Wire Specification: Input ≤95mm2, Output ≤25mm2
- ? Wiring Method: 1 Input, 7 Outputs
- ? Recommended Fuses: ANMA/AN998/AN498/AN478/AN492 15A~250A
- 2.說明：
- ?額定電壓：≤70V DC
- ?使用環境： -40～+125℃ u 防水等級：IP 材質：塑膠、銅合金、鋼
- ?電線規格：輸入≤95mm2,輸出≤25mm2
- ?接線方式： 一進7出
- ?推薦保險:ANMA/AN998/AN498 /AN478/AN492 15A～250A
- 3. Features
- ◆ Plug anti-stay design can prevent installation errors
- ◆ Novel plug structure, easy to install and disassemble
- ◆ The front arrow of the top cover is the direction of current entry and exit, easy to install
- ◆ Use M6 bolts to lock the top cover, provide greater locking force
- ◆ Use built-in nut fixing method, Reduce abnormal noise and drop
- ◆ can achieve a variety of inlet and outlet wire wiring methods, expand the product compatibility
- ◆ Inlet and outlet wire terminals are separated to ensure maximum safety, and the retaining wall is placed wire distortion is too serious/temperature is too high to burn the base structure
- 3.特征
- ◆ 堵頭防呆式設計可防止安裝錯誤
- ◆ 新穎的堵頭結構，方便安裝與拆卸
- ◆ 上蓋正面箭頭為電流進出方向，方便安裝
- ◆ 使用 M6 螺栓鎖緊上蓋， 提供更大的鎖緊力
- ◆ 采用內嵌式螺母固定方式， 減小異響及掉落
- ◆ 可實現多種進出線接線方式， 擴大了產品兼 容性
- ◆ 進出線接線柱分開確保最大安全性， 并設有 擋墻放置導線扭曲過于嚴重/溫度過高時燒 毀座體

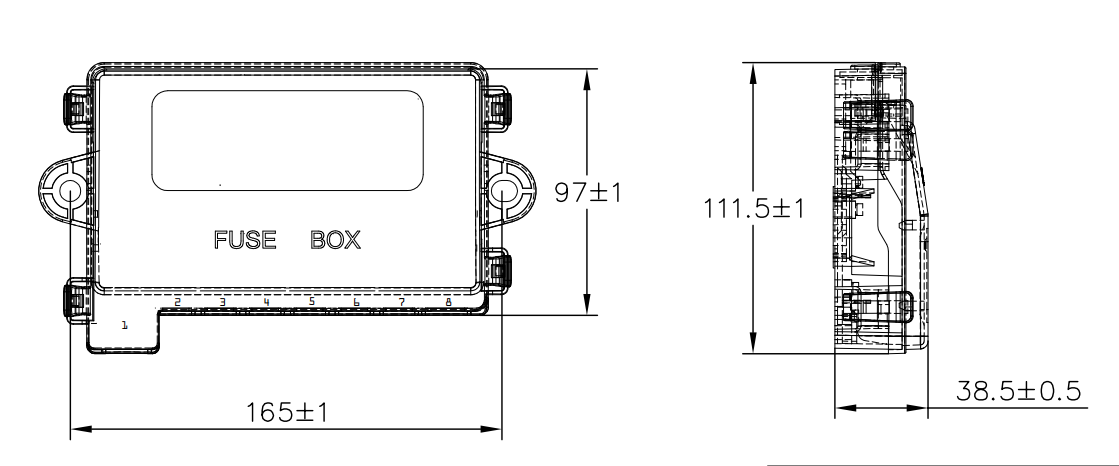

- 構造
